HTR SPİRAL HORTUMLAR
Tip Q
HRT mm * mm

SHC42 4X2
SHC64 6X4
SHC86 8X6
SHC108 10X8
SHC1210 12X10

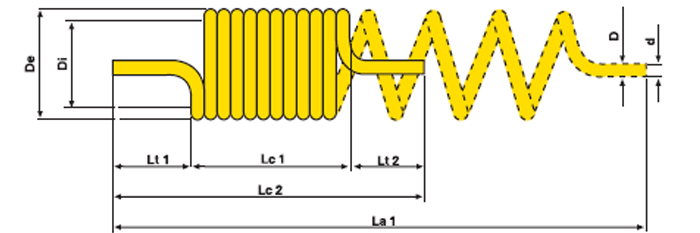

HTR SERİSİ SPİRAL HORTUM TEKNİK ÖZELLİKLERİ

  Boy 5 m 7,5 m 10 m 12 m 15 m 30 m
Kodu D d De Di Lt1 Lt2 Lo1 Lc2 La1 Lc1 Lo2 La1 Lc1 Lc2 La1 Lo1 Lc2 La1 Lo1 Lo2 La1 Lc1 Lc2 La1
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
SHC42XY 4 2 50 42 100 100 117 317 2500 184 384 3750 250 450 5000 304 504 6000 384 584 7500 784 984 15000
SHC64XY 6 4 66 54 100 100 141 341 2500 222 422 3750 303 503 5000 368 568 6000 465 665 7500 950 1150 15000
SHC86XY 8 6 88 72 100 100 141 341 2500 222 422 3750 303 503 5000 368 568 6000 465 665 7500 950 1150 15000
SHC108XY 10 8 106 86 100 100 151 351 2500 237 437 3750 323 523 5000 392 592 6000 495 695 7500 1010 1210 15000
SHC1210XY 12 10 130 106 100 100 145 345 2500 227 427 3750 310 510 5000 376 576 6000 475 675 7500 970 1170 15000
